Single–End Type Radiant Tube
Single-End Type Radiant Tube is an energy-saving type burner with a built-in recuperator in the head section.
Features
- Uniform distribution of tube surface temperature and high durability compared with the conventional straight type and U-type
- Wide range of burner combustion and easy to control (PID control and ON/OFF control are possible selectively or in combination)
- Environmentally friendly burner with low-level emissions of noise and NOx (by EGR system).
- Easy handling and maintenance
(The tube can be replaced while the burner is in operation) - Operatable on city gas, natural gas, LPG (butane, propane and dilute gas) and various other types of gas such as coke oven gas
Specification
| Model | 80SERT(3B) | 100SERT(4B) | 150SERT(6B) | |
|---|---|---|---|---|
| Outer tube dia. (mm) | 90 | 115 | 165 | |
| Outer tube max. length (mm) | 1,800 | 2,300 | 2,300 | |
| Max. length input (kcal/hr) | Max. | 18,000 | 30,000 | 60,000 |
| Min. | 5,000 | 7,000 | 10,000 | |

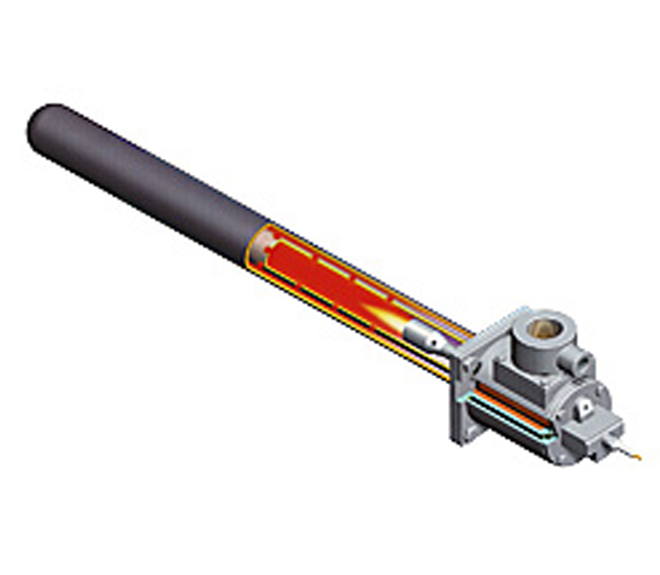

Structure

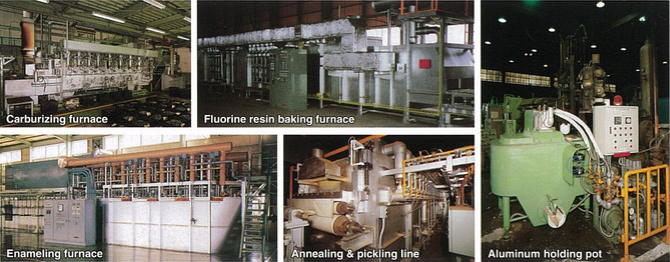

Application
- Various atmosphere heat treating furnaces
- Enameling furnace
- Fluorine resin baking furnace
- Glass baking furnace, glass tempering furnace
- Metal holding furnace, salt bath, liquid heating
- Air heater
